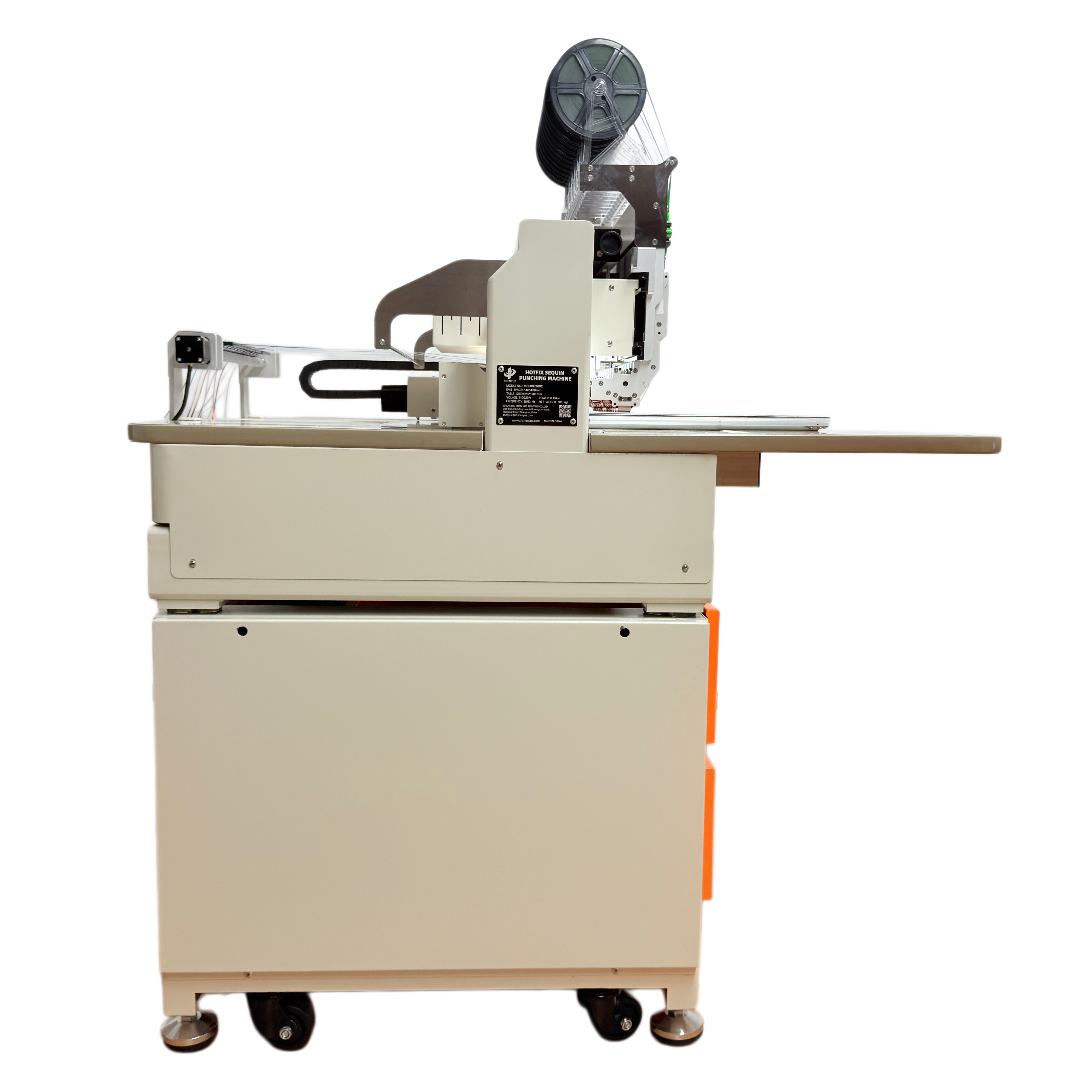

Hotfix Sequin Motif Punching Machine

Our flagship hotfix sequin motif punching machine — engineered for high-precision multi-color sequin patterns. 12-needle capability, closed-loop XY drive, intelligent monitoring, and integrated storage.

Inquire About This Machine

Key Features

Engineered for precision & productivity

0.1 mm spacing accuracy and 0.05 mm overlap precision help reduce missing or flipped sequins for consistent results.
Built-in detection system identifies missing sequins and supports one-touch power reset for continuous operation.
Balanced head structure and closed-loop XY control ensure stable motion with low vibration and high accuracy.
One-touch threading and active scrap collection simplify daily operation and improve production efficiency.
Supports up to 12 colors per head, enabling vibrant and complex sequin designs.
Servo motor spindle and optimized drive deliver high-speed output without sacrificing stitching quality.
Built-in drawer storage keeps tools and materials organized without requiring additional cabinets.
Compatible with sequins from 0.8 mm to 10.0 mm, including special shapes such as stars, crescents, and squares.

Machine · Technical Data

Full specifications

Specification	Value
Heads	1
Needles	12
Power	750 W
Voltage	110 / 220 V
Dimensions	1500 × 1210 × 1050 mm
Max Embroidery Area	510 × 450 mm
Spindle System	Servo Motor
XY Drive System	Closed-Loop Stepping
XY Drive Structure	Bottom Support
N.W / G.W	300 / 415 KGS
Wooden Case	1370 × 1130 × 1170 mm

Sequin Punching Machine

The loose sequin punching machine is designed for handling loose sequin production, delivering rapid output while ensuring the consistent quality of each sequin — ideal for high-volume, precision-driven projects.

Hotfix Sequin Mold

Precision-engineered cutting molds installed in the punching machine to transform raw hotfix material into ready-to-use sequins. Available in 60+ standard shapes — from classic round, square, heart, and star to bespoke silhouettes designed for your brand. Custom mold development is one of our specialties.

Cutting Machine (Self-developed)
